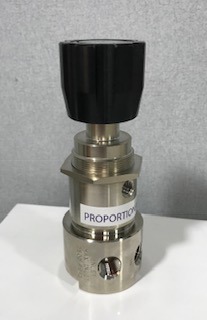

Stainless Steel Manual High Pressure Regulator

Single Stage Piston Sensed Self-Venting

Pressure Range 0-1000 - PSI

Part No. PPA-PI-1000-1-4

Stainless Steel Manual high pressure regulator

Part No. PPA-PI-1000-1-4 a pressure reducing regulator that is single stage, piston sensed, self-venting, cylinder and line regulator. The regulators feature a max inlet pressure of 3500 PSIG (241.32 bar), control pressure up to 1000 PSIG (68.95 bar), and Cv 0.20. The self venting hole in the bonnet can be captured for use with toxic/corrosive media.

Features

Captured, self-venting, bonnet vent
Stainless steel piston/piston housing
3500 PSIG (241.32 bar) max inlet pressure
Cv 0.20
Machined bar stock body, bonnet, and piston eliminates porosity found in casting
Economical pricing
Ex-Stock

Description

Part No. PPA-PI-1000-1-4 a pressure reducing regulator that is single stage, piston sensed, self-venting, cylinder and line regulator. The regulators feature a max inlet pressure of 3500 PSIG (241.32 bar), control pressure up to 1000 PSIG (68.95 bar), and Cv 0.20. The self venting hole in the bonnet can be captured for use with toxic/corrosive media.

Features

Captured, self-venting, bonnet vent
Stainless steel piston/piston housing
3500 PSIG (241.32 bar) max inlet pressure
Cv 0.20
Machined bar stock body, bonnet, and piston eliminates porosity found in casting
Economical pricing
Ex-Stock
